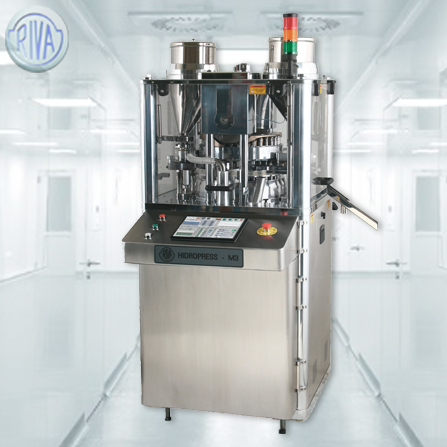

Hidropress MII


MAXIMUM PERFORMANCE WITH A MONOBLOCK SYSTEM

This machine has been designed and manufactured under GMP guidelines for the production of double- and single-layer tablets. The pre-compression and compression rolls are movable, and this allows making individual adjustments for each roll, sampling, and starting with a progressive torque, among other features.

On the upper part, there are two hoppers located on each of the force feeders containing product for each of the layers, together with the feeders. They are easily and quickly assembled, allowing optimal cleaning and an effective production.

In the compression area, the turret head has an automatic and centralized lubrication system. For each of the punches, both upper and lower, there are housing wipers that avoid the lubricant to come into contact with the product.

The equipment is controlled and operated from a touch screen PC panel system with a clear and intuitive interface, 21 CFR Part 11-compliant.

  • Production
  • Single/double layer
  • Touch screen
  • New Software
